Series HLF-RM

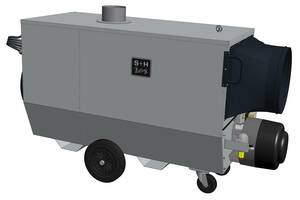

HLF-120 RM Side view
HLF-120 RM Side view
HLF-120 RM Side view
HLF-120 RM Side view

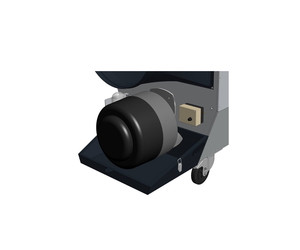

drip tray
drip tray
HLF-120 RM Fan view with connection for recirculation mode
HLF-120 RM Fan view with connection for recirculation mode

S+H / Nolting - warm air heaters for mobile deployment. Quick available heat at the right place by directed air control.

  • Heating and ventilation of tents
    for exhibitions or events and workshops
  • Heating of protective quarters
  • Heating of construction sites
  • Thawing and de-icing of construction materials
  • Agricultural applications
  • Drying of grain
  • Horticulture applications

S+H / Nolting  mobile warm air heaters offer an approved technology, meet highest requirements of quality and guarantee a high secure supply of the most different applications.

Standard equipment is:

  • Oil burner
  • One-run filter with quick extractor fan
  • Burner hood with oil drip tray
  • Switch box
  • High-efficiency fan
    for high air capacity and pressure
  • Heat exchanger made of steel,
    extremely heat resistant
  • Double layer outer casing to insulate
    against heat losses
  • Strong chassis for difficult grounds
  • Can be moved by crane
  • Varnisch possible in any RAL colour
  • Connection for recirculation mode
  • Front deflection pulley
  • Pockets for fork lift truck
  • Front handles







All conventional oil and gas burners can be used.

Illustrations partly with configuration possibilities



Possibilities of configuration:

  • Gas blower burner
  • Retrofit kit for oil pre-heating
  • Wet room thermostat with 10 m
    cable and connection plug
  • Exhaust system
  • Hoses for hot air
  • Blow-out adapter

DIN geprüft CE TÜV Cert

Further information:

Series HLF-RM

Technical Data:

Type of unit
HLF 30 RM
HLF 70 RM
HLF 120 RM
HLF 150 RM
Model     with High-efficiency fan
Nominal heat loading capacity   kW  31 77 120 166
Rated heat output   kW  28 70 110 150
Air capacity   m³/h  3,000 6,000 8,500 11,000
External pressure   Pa  200 350 350 350
Motor power   kW  0.56 1.4 2.5 2.5
Electric supply   V/Hz  230 / 50 230 / 50 400 / 50 400 / 50
Length   mm  1,530 1,900 2,300 2,400
Width   mm  610 720 900 900
Height   mm  990 1,200 1,450 1,450
Air outlet   ø A  300 450 500 600
Flue gas   ø R  150 150 200 200
Weight without burner   kg  138 250 370 400

Version: 2024-03
